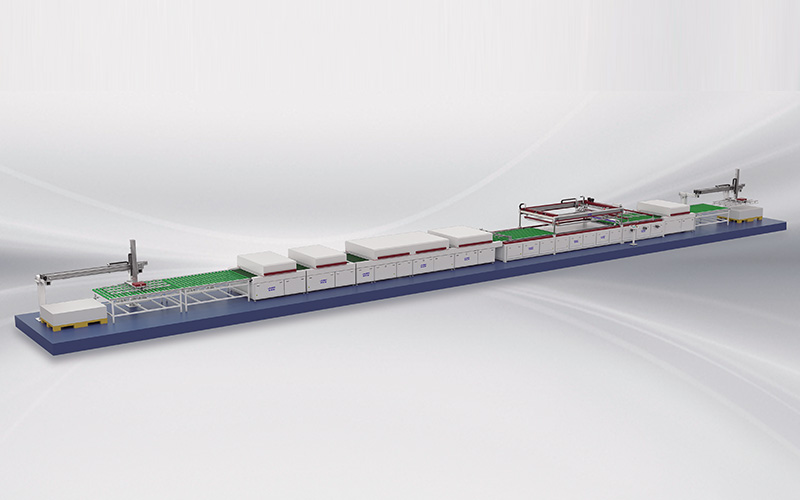

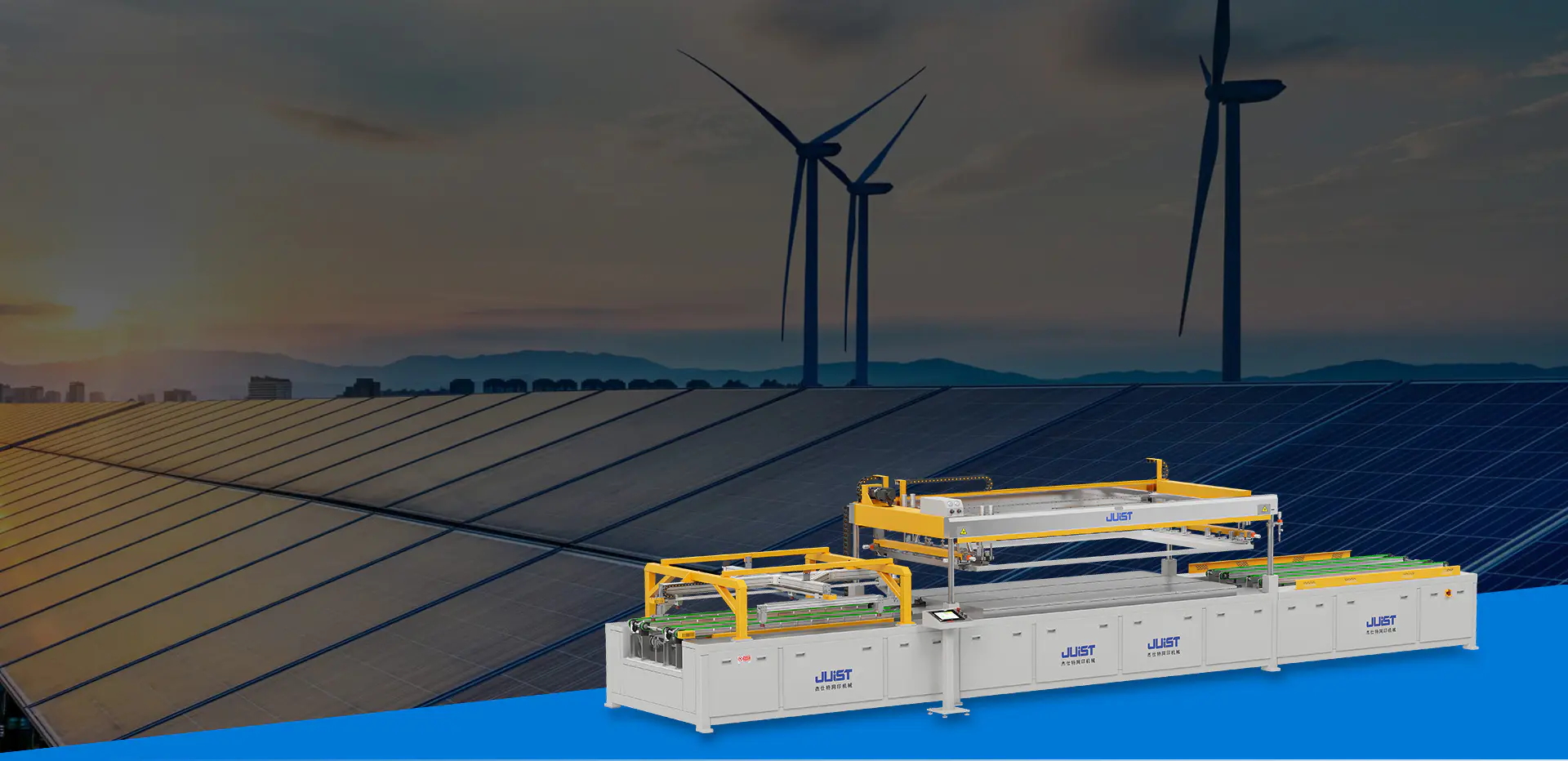

设备用途：适用于光伏玻璃纤维背板片材丝网印刷工艺。

Equipment use: Suitable for roll-to-roll screen printing process of photovoltaic film flexible backplane.

特点：

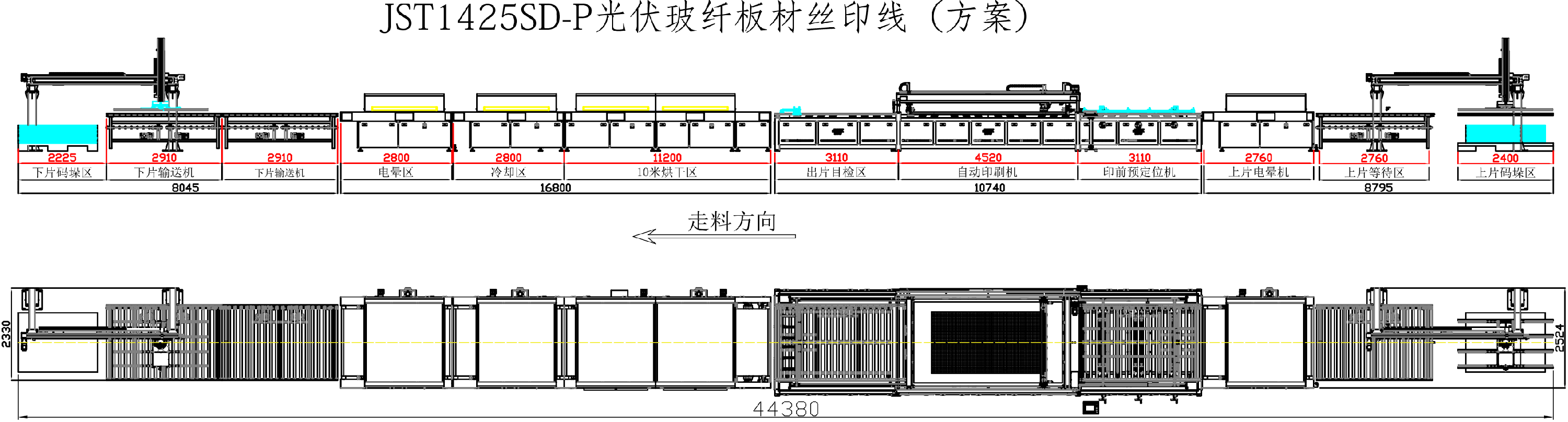

1. 上料码垛、机械手自动上片、印前电晕材料、印前预定位、机械手送片、自动印刷、机械手取片、自动烘干、印后电晕、机械手自动 下片、收卷码垛实现全自动运行，易于操作，保证品质。

2. 印刷采用伺服电机，精度高确保印刷产品质量稳定，印刷物均匀无波浪状。

3. 控制系统采用进口 PLC 可编写控制系统和人机界面。

4. 本机设有自动报警装置及周边安全保护开关，并可选择配置气动机械安全保护装置，确保安全生产。

Features:

1. Loading palletizing, manipulator automatic loading, pre-press corona material, pre-press positioning, manipulator feeding, automatic printing, manipulator taking, automatic drying, post-press corona, manipulator automatic unloading, winding palletizing to achieve  automatic operation, easy operation and quality assurance.

2. The printing adopts servo motor with high precision to ensure stable quality of printed products and uniform printing without wave.

3. The control system adopts imported PLC to write the control system and man-machine interface.

 4. The machine is equipped with automatic alarm device and peripheral safety protection switch, and can optionally configure pneumatic  mechanical safety protection device to ensure safe production.
