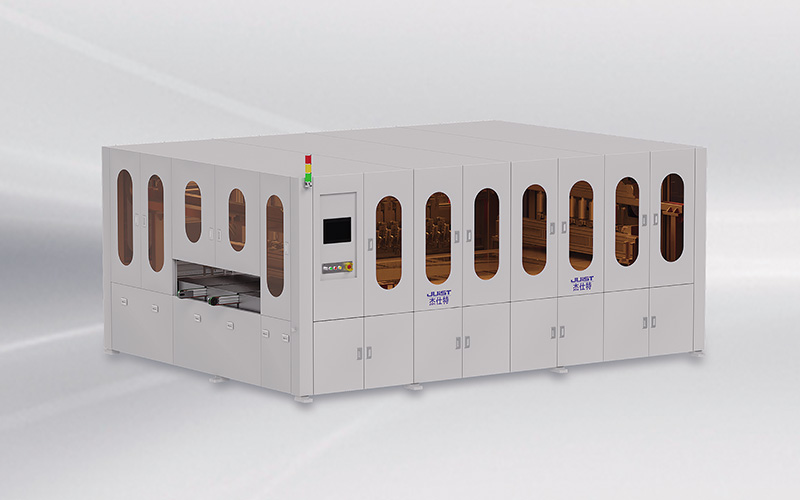

设备用途：适用于光伏玻璃背板胶带贴胶工艺。

Equipment use: Suitable for fully automatic photovoltaic backplane

特点：

1. 玻璃输送、精准定位、横向贴胶条、纵向贴胶条、自动加热、胶 带自动剪断、实现全自动生产，易于操作。

2. 输送采用进口同步防滑带传动平稳，低噪音低，设计皮带安装 调节快捷方便，利于维护。

3. 玻璃定位，采用伺服电机中心定位方式，确保玻璃对位精准。

4. 贴胶头间距采用数字化设置，快速设置好贴胶机的中心位置。

5. 长边及短边贴胶机数量可根据客户产品要求个性化的定制。

6. 贴胶采用温度贴胶，温度在常温 -160°可调。

7. 控制系统采用进口 PLC 可编写控制系统和人机界面。

8. 本机设有自动报警装置及周边安全保护开关，并可选择配置 气动机械安全保护装置，确保安全生产。

Features:

1.Glass conveying, accurate positioning, horizontal adhesivestrip, longitudinal adhesive strip, automatic heating, automatictape cutting, automatic production, easy to operate.

2.The transmission adopts imported synchronous non-slipbelt, low noise, fast and convenient installation and adjustmenof the design belt, which is conducive to maintenance.

3. Glass positioning, using the servo motor center positioningmode, to ensure that the glass alignment is accurate.

4. The spacing between adhesive heads is set digitally toquickly set the central position of the adhesive machine.

5. The number of long side and short side gluing machines carbe customized according to customer product requirements.

6. The adhesive adopts temperature adhesive, and thetemperature can be adjusted at room temperature -160°.

7. The control system adopts imported PLC to write controlsystem and man-machine interface.

8. The machine is equipped with automatic alamm device andperipheral safety protection switch, and can optionallyconfigure pneumatic mechanical safety protection device toensure safe production.
